917789-1
Manufacturer:
TE Connectivity
Mfr.Part #:
917789-1
Datasheet:
Description:

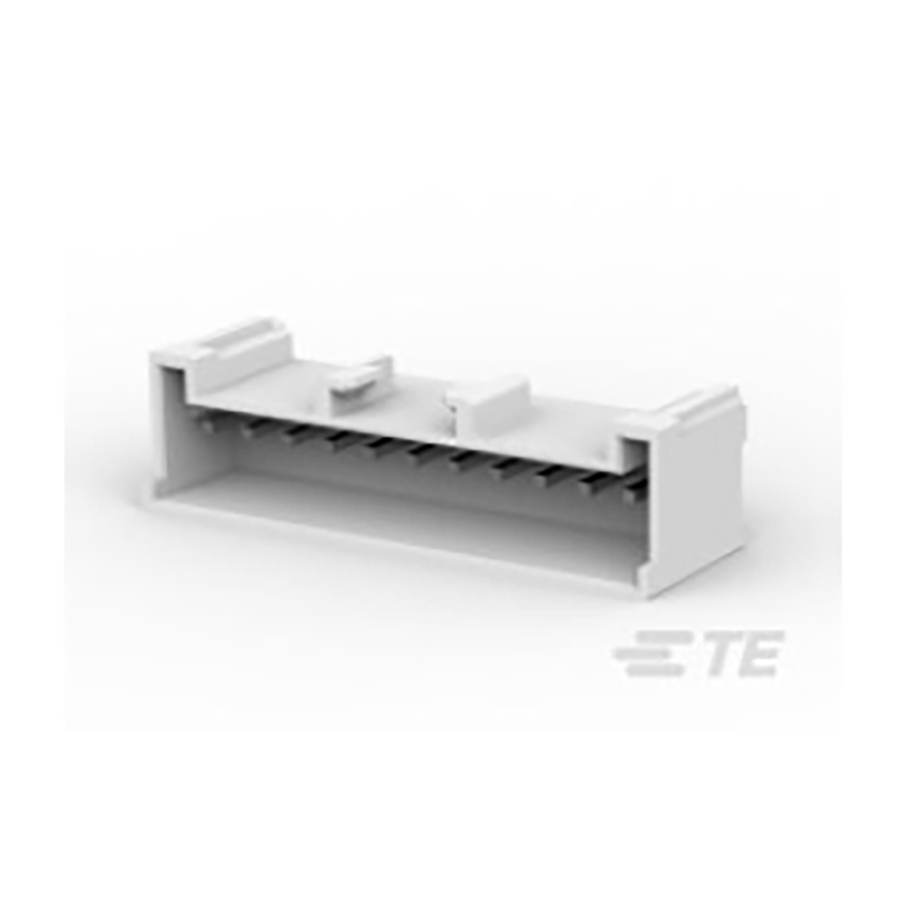

Automotive Connectors Through Hole Accessory Type:Header Assembly Number of Positions:11 Receptacle (Female)
| Parameter | Value |
|---|---|
| Length | 32.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Packaging | Bulk |
| Voltage Rating | 50 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle (Female) |
| Number of Contacts | 11 |
| ELV | Compliant |
| Connector Type | Header, Receptacle, Tab |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Circuit Application | Signal |
| Contact Style | Straight |
| Contact Current Rating | 3 A |
| Housing Color | Natural |
| Contact Mating Length | 4.699 mm |
| PCB Thickness | 1.6002 mm |
| Plating Thickness | 800 nm |
| Mating Post Length | 4.572 mm |
| Contact Shape | Square |
| Underplate Material | Copper |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Retention | With |
| Contact Finish Thickness - Mating | 800 nm |
| Accessory Type | Header Assembly |
Stock: 591
Distributors
pcbx
pcbxUnit Price$0.63180
Ext.Price$0.63180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63180 | $0.63180 |
| 10 | $0.53946 | $5.39460 |
| 25 | $0.53347 | $13.33675 |
| 50 | $0.49159 | $24.57950 |
| 100 | $0.45062 | $45.06200 |
| 300 | $0.41307 | $123.92100 |
| 500 | $0.37865 | $189.32500 |
| 1000 | $0.34710 | $347.10000 |
